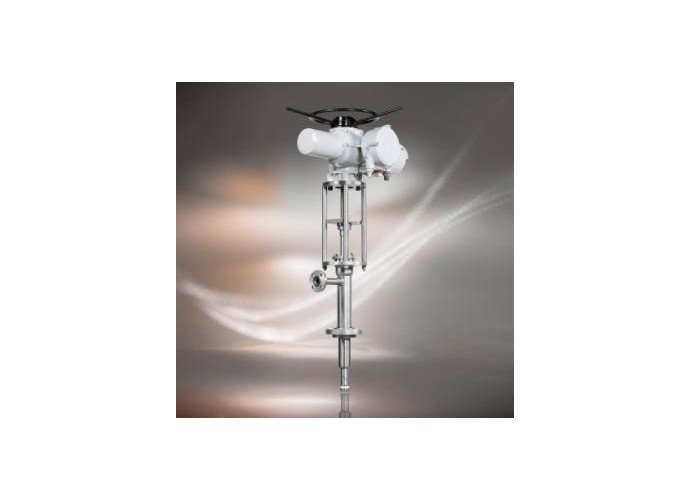

Steam Injection Valve type 27 SE

Application

There are two common applications:

-          Direct and quick pre-heating of media and/or vessels

-          Steam stripping and sanitisation to remove monomers or impurities in polymerisation processes.

The choice of a piston or disc injection valve design is process and media driven:

-          A solid piston design is suitable for full bore, high flow rate applications with vibrations.

-          Disc style injection valves are more suitable where space is limited, the required flow rate is low or where low or zero emissions to atmosphere are important.

Key Features:

-          Piston or disc valve design

-          Metal to metal sealing

-          Replaceable seat and injection head

-          Customised arrangement of holes for any required

-          gas or vapor injection

-          Non clogging
