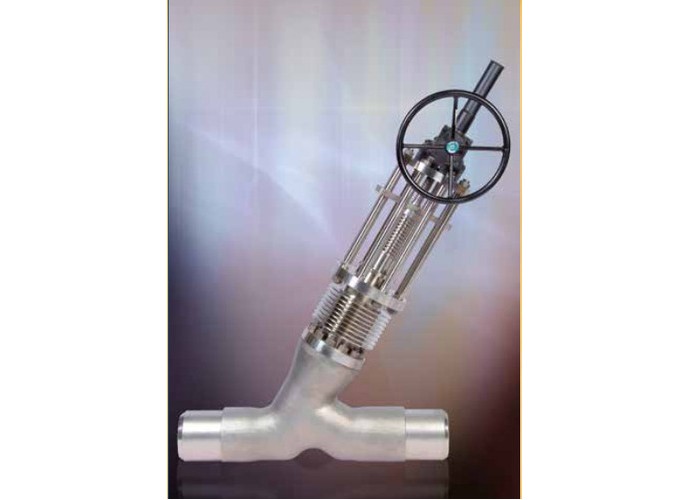

Y-Pattern Straightway Type 53, Bolted Bonnet, ASME 150-2500

Y-Pattern Straightway Type 53, Bolted Bonnet, ASME 150-2500

Y-Pattern Straightway Type 53, Bolted Bonnet, ASME 150-2500

Specifications

Item

Standard Features

Optional Features

Size

DN 25 (1”) to DN 400 (16”)

Larger on request

Pressure Class

ASME 150 to ASME 2500

Higher on request

Body Material

A216 WCB, A217 WC6, A351

316 SS, Super-Duplex, Incoloy, Hastelloy, others on Request

Trim

Stainless Steel, A182 F6

As above, plus fully Stellited

Sealing

Ram Seal®

Stelliting, other Hard-facing

Seal to Atmosphere

Graphite Packing

TA-Luft / Low Emissions

Connections

Flanges, Butt-weld

Other on Request

Standards / Cert.

ASME B16.34, API 598 & 623, EN 12266, Dir. PED 97/23/EC

NACE MR0175, others on request

Actuation

Manual

Bevel-Gear, Electric, Pneumatic
