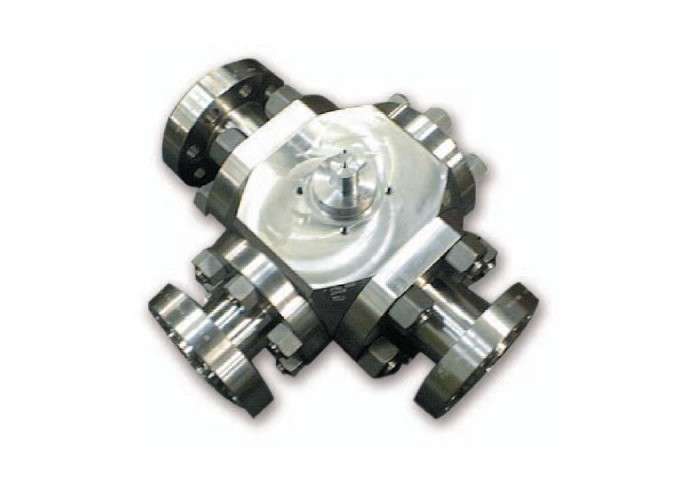

Trunnion ball valve - T Type

Trunnion ball valve - T Type

Trunnion ball valve - T Type



Trunnion mounted ball valves 3 and 4 ways

Forged, bolted body

Carbon steel, stainless steel, special materials

CE 97/23/CE all categories

Classes ASME/ANSI ISO PN 20 to ISO PN 420

Classes DIN-PN PN 10 to PN 64

ND 1/2'' (15) to 12'' (300)

All types of end connections (flanged, BW etc)

In line tightness by soft or metal to metal sealing

Transflow and non transflow

Connection of L, T, X ways

Full and reduced bore

Solid trunnion mounted ball

Solid blow out proof stem

Independent seats with automatic internal relief

ISO TOP FLANGE acc to ISO 5211 (for actuators)
