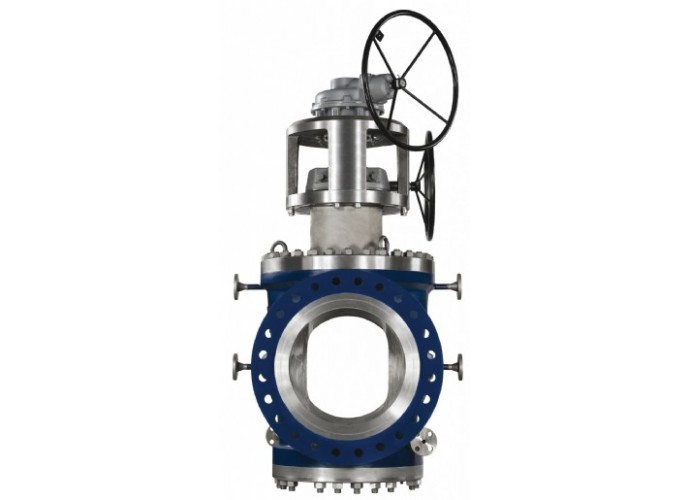

Plug Valve

1- Lift Plug Valve

2- IsoPlug Valve

3- SwitchPlug Valve

4- Lubricated Plug Valve

5- Dump Valve

6- TruEPlug Valve



General Specifications

Rating:

-          ASME Class 150# to 900#(specials to 4500#)

-          High temperature version to 1200°C

Sizes:

-          SwitchPlug - Typical sizes range from 8" to 24"

-          IsoPlug - Typical sizes range from 8" to 36"

Material and Options:

-          Body;

·         Stainless Steel, Duplex, Hastelloy, Lucoly, Inconel, Titanium, WCB, WC6, WC12, WC12A

-          Bore;

·         Full bore, oval or round(pigable)

-          Trim Coating;

·         Chrome, Ceramics, Bonding

-          Lining/Sleeves;

·         Gold, Titanium, and other materials on request

-          Sealing;

·         Standard metal to metal; wide sealing lip

-          Flanges;

·         Fully flanged RF and RTJ, DIN and ANSI Through bolt-holes

-          Jacketing;

·         Full or partial jacketing available

-          Purge and Flushing Connections;

·         Five connections as standard; more on request, Port size – 1 to 2 inch

-          Flow Direction;

·         Bi-directional; flow to open or close

-          Actuation;

·         Electric, pneumatic or hydralic are available

-          Coking Defense System

·         Steam flushing during plug operation

·         Ingetral flush drain/dump valve enabling steam purging above or below the plug

·         IsoPlug Valves with detachable bottom lids to allow hydro-blasting of any lodged coke or debris
